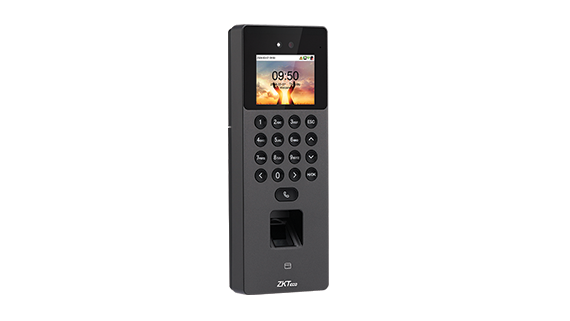

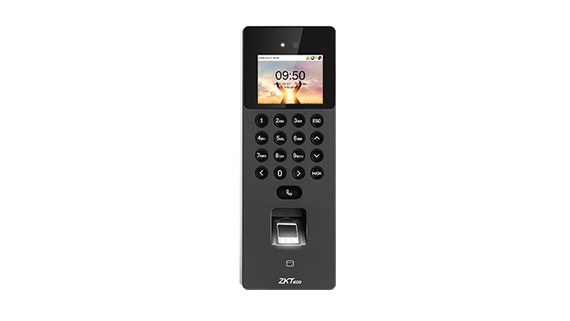

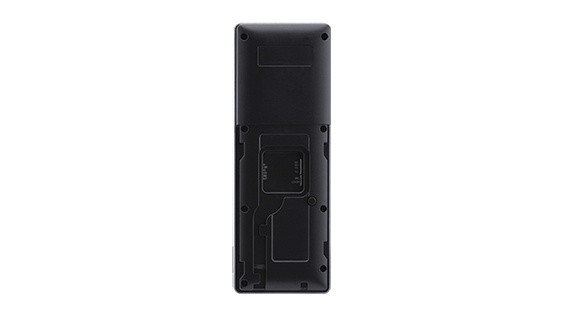

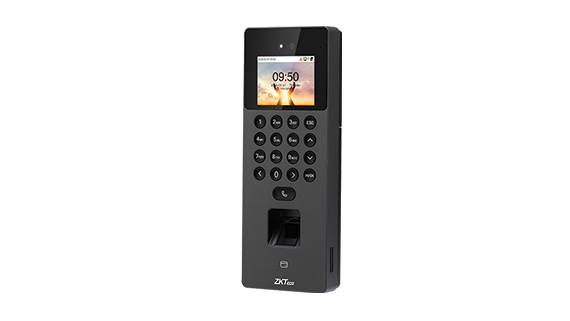

Face CSFRAF09
Time Attendance Products
Model : CS FRA F09
F09 adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.
Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
Product Description
| Parameters | |
|---|---|
|
Model |
F09 |
|
Display |
2.4″@ TFT Color LCD Screen (320*240) |
|
User Capacity |
3,000 (1:N) (Standard) |
|
Communication |
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) USB: Type A (USB Drive Only )*1 Electric Lock*1, Door Sensor*1, Exit Button*1 |
|
Fingerprint Capacity |
3,000 (1:N) (Standard) |
|
Power Supply |
DC 12V / 3A |
|
Algorithms |
ZKFace V4.0 ZKFingerprint V13.0 (Standard) /V10.0 (Optional) |
|
Authentication Method |
Fingerprint / Face / Card / Password (Physical Keypad) |
|
Camera |
WDR Binocular Camera @ 1MP |
|
Card Type |
ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
|
Face Capacity |
1,500 (1:N) (Standard) |
|
Face Template |
1,500 (1:N) (Standard) |
|
Hardware |
CPU: Dual Core@1GHz RAM: 512MB; ROM: 8GB Speaker: 8ohm @1W Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32 dB/Impedance: 2.2kΩ) Supplement Light: Yes Physical Keypad: 17 Keys Fingerprint Sensor: ZK Optical Sensor |
|
Operation System |
Linux |
|
Optional Features |
IC Card, Wi-Fi, Wireless Doorbell |
|
Standard Functions |
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access
Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm,
Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0),
ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push
and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
|
Transaction Capacity |
150,000 (1:N) |
|
Certifications |
ISO14001, ISO9001,CE, FCC, RoHS |
CSFRA F09
