IP

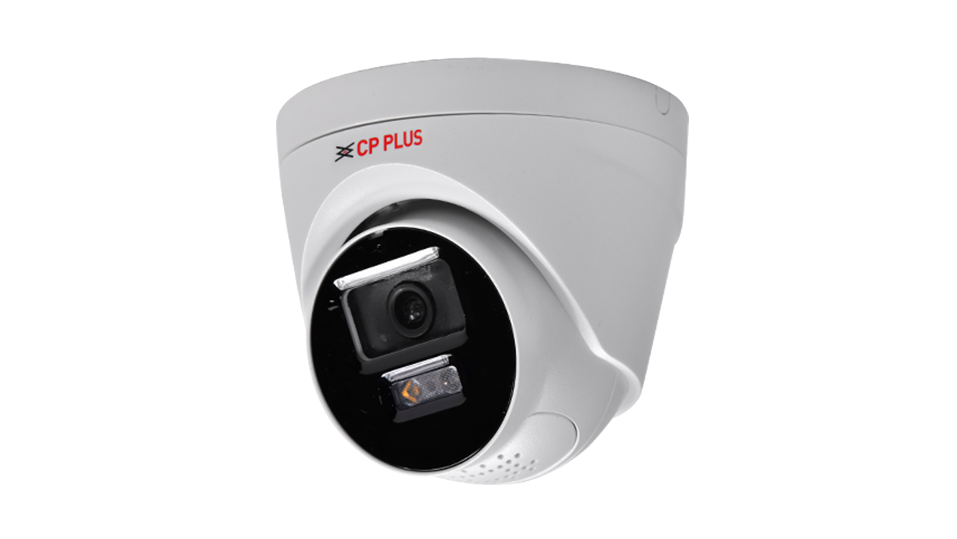

CP-UNC-DA61L3C-LQ

1/2.7" 6MP PS CMOS Image Sensor (0.9407 Centimeters)

Max. 6MP (3200 × 1800)@1–20 fps/ (2688 × 1520)@1–25/30 fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

Support Built-in Mic

3.6mm fixed Lens

DWDR, Day/Night (ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking.

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67

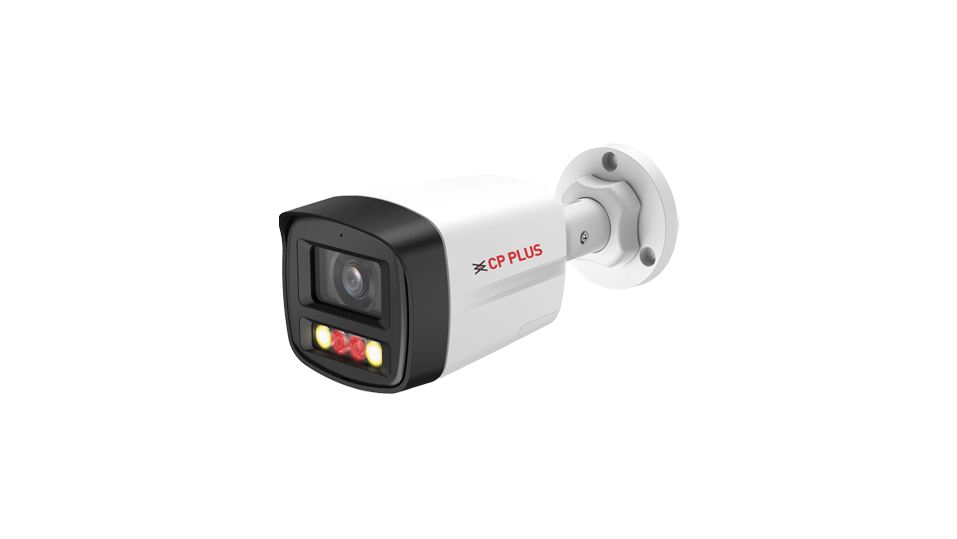

CP-UNC-TC61L5C-VMD-LQ

1/2.7” 6MP PS CMOS Image Sensor (0.9407 centimeters)

Max. 6MP (3288 × 1850)@1–20 fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Quad Stream

WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 50 Mtr., Warm Light Range of 30 Mtr.

Support Starlight Technology

Micro SD Card, PoE, IP67, IK10 (optional)

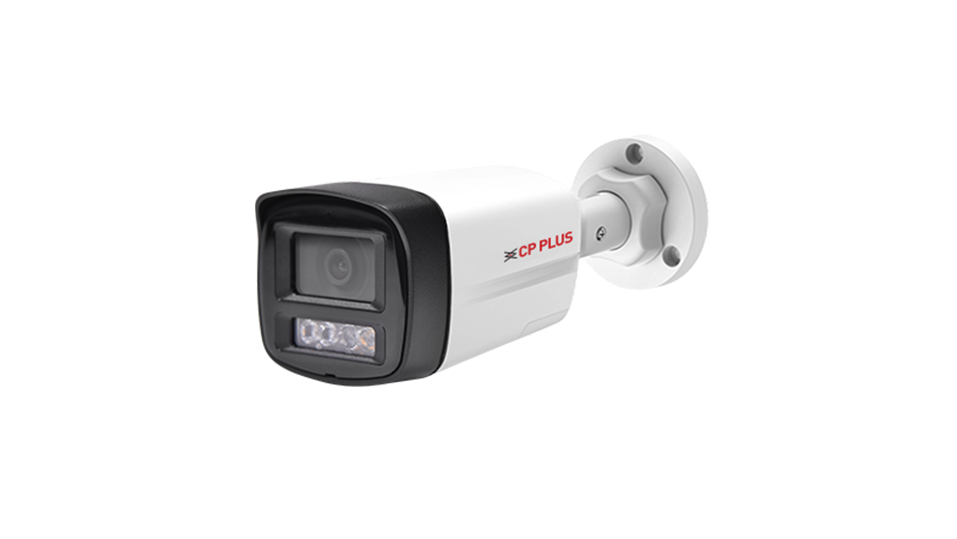

CP-UNC-TA41L3B-D-LQ

1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters)

Max. 4MP (2688 × 1520)/ (2560 × 1440)@1-25/30fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

Support Built-in Mic, Built-in speaker

3.6mm fixed Lens

WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67

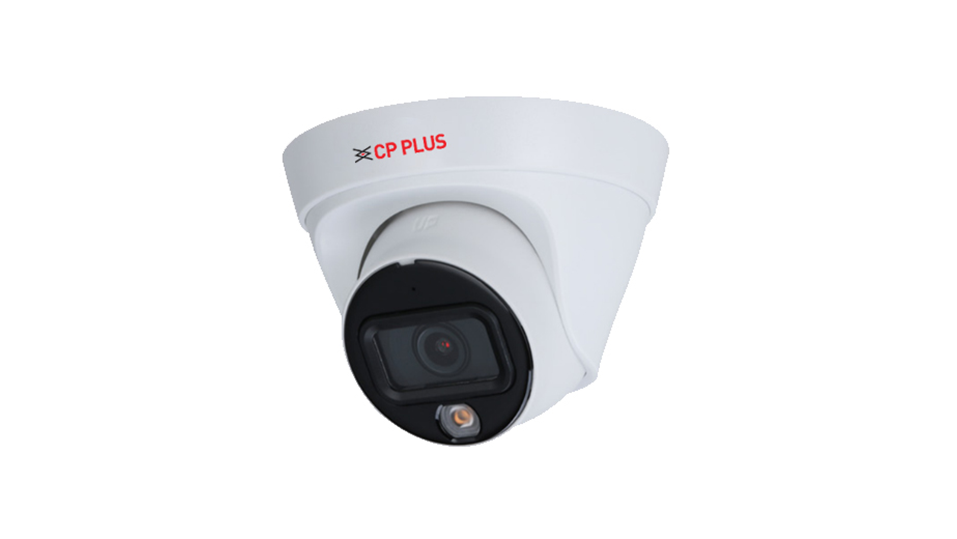

CP-UNG-DAZ 1L3B-LO

1/2.7° 2MP PS CMOS Image Sensor

Max. 2MP(1920 × 1080)@1-25/30 fps

Instastream, H.265, H.264, Dual stream Encoding

DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 30 Mtr., Warm Light Range of 30 Mtrs, IP67, PoE

Build in Speaker and mic

CP-UNC TA21L3B-LQ

1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)

Max. 2MP (1920 × 1080)@25/30fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

Support Built-in Mic, Built-in Speaker

3.6mm fixed Lens

DWDR, Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67

CP-UNC-DA41L3B-D-LQ

1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters)

Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

Support Built-in Mic, Built-in speaker

3.6mm fixed Lens

WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67

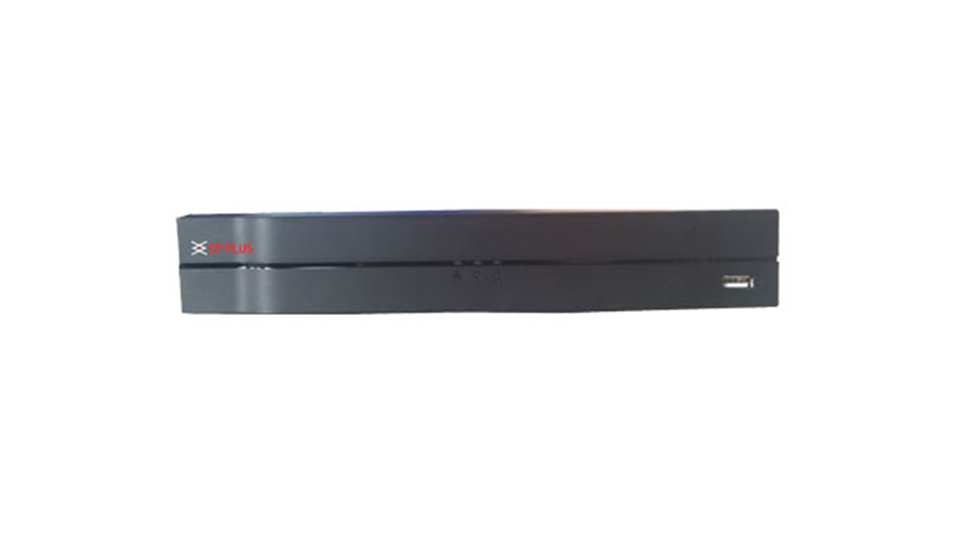

CP-UNR-104F1/108F1

Support 4 channel IP camera input

Instastream/H.265/Smart H.264+/H.264 codec decoding

Up to 8MP resolution preview and playback

Max 80Mbps Network Bandwidth

Support 1 SATA HDDs up to 8TB, 2 USB Ports (USB2.0)

VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P

Support Multi-brand network cameras

ONVIF Version conformance

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

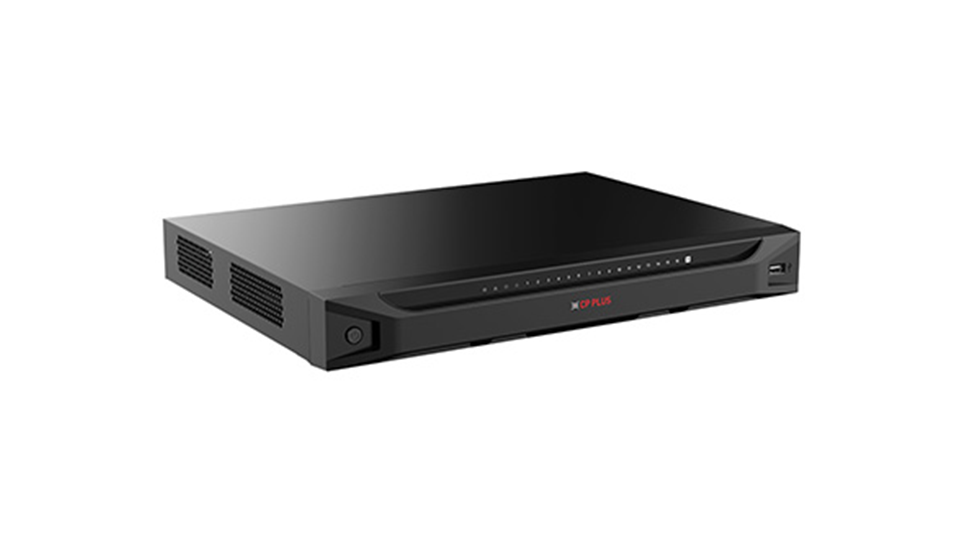

CP-UNR-4K4082-V2

Up to 8 channel IP camera input

Instastream/H.265/Smart H.264+/H.264

Up to 8MP resolution preview and playback

Max 200Mbps incoming bandwidth

Support 2 SATA HDDs up to 10TB Each, 2 USB(1 USB3.0)

HDMI / VGA simultaneous video output

Support Multi-brand network cameras

ONVIF Version 2.4 conformance

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

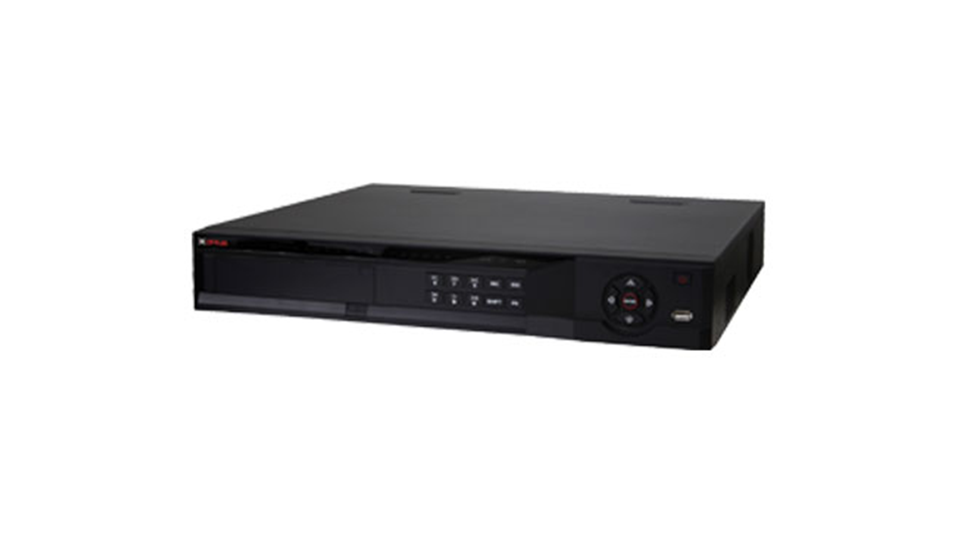

CP-UNR-4K4164-I

16 Channel IP video access

Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled)

Support 4 SATA HDDs up to 10TB Each, 2 USB Ports

AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus

1 HDMI / 1 VGA simultaneous video output

Support 4 SATA HDDs up to 10TB Each, 2 USB Ports

AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map

Mobile Software: iCMOB, gCMOB

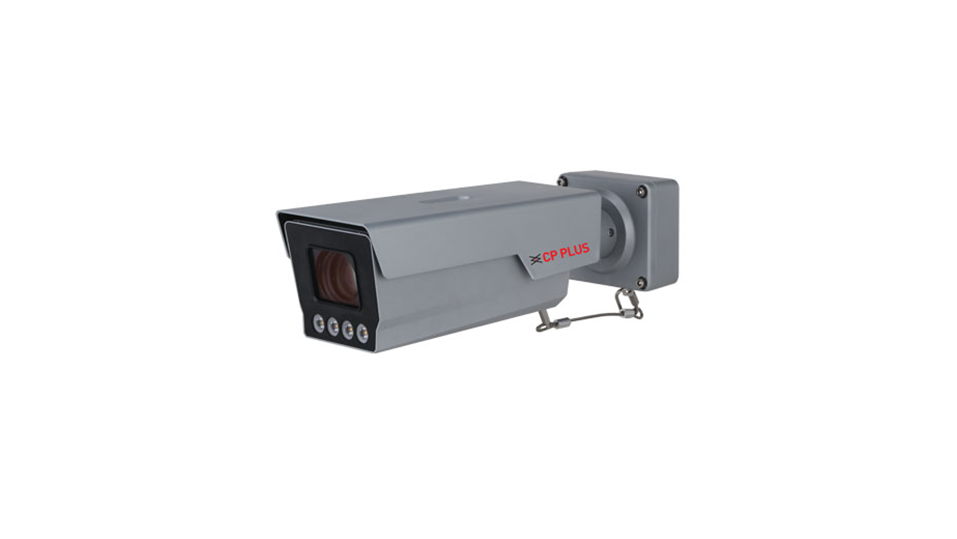

CP-UNC-TT41L3-VMD-Q

1/1.8" 4 MP CMOS sensor (1.411 Centimeters)

Max. 4MP (2688 × 1520)@30fps

H.265, H.264M, H.264H, H.264B, MJPEG

10 mm–50 mm Motorized Lens

WDR(140dB), Day/Night(ICR), 3D NR, BLC, HLC

IR Range of 30 Mtr., IP67, IK10

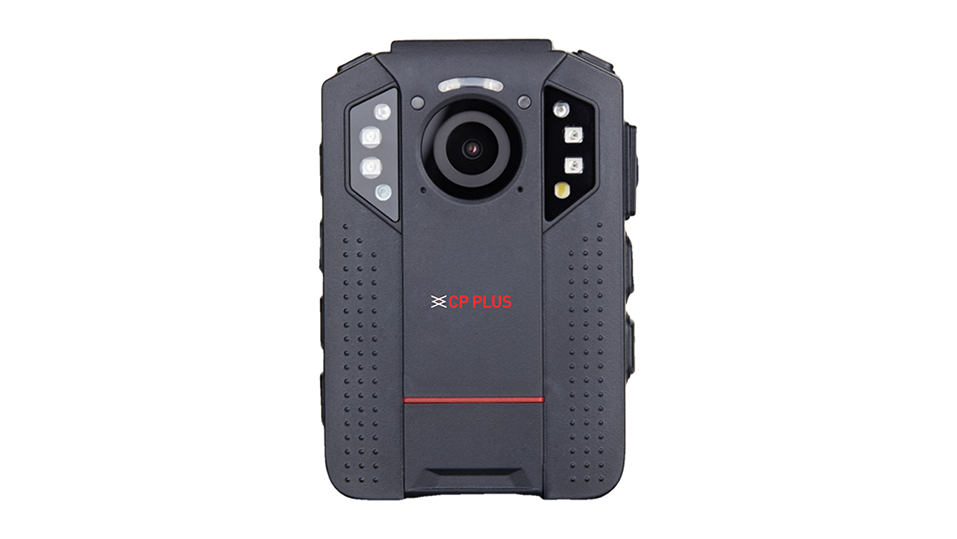

CP-EBC-4413

Supports 2560 x 1440P HD recording

Supports 58MP Picture Capture

Support 120 degree wide angle

Support 10 meters night vision

Supports 12 hours continues recording based on resolution 720P@30fps

Support overwrite automatically when SD card is Full

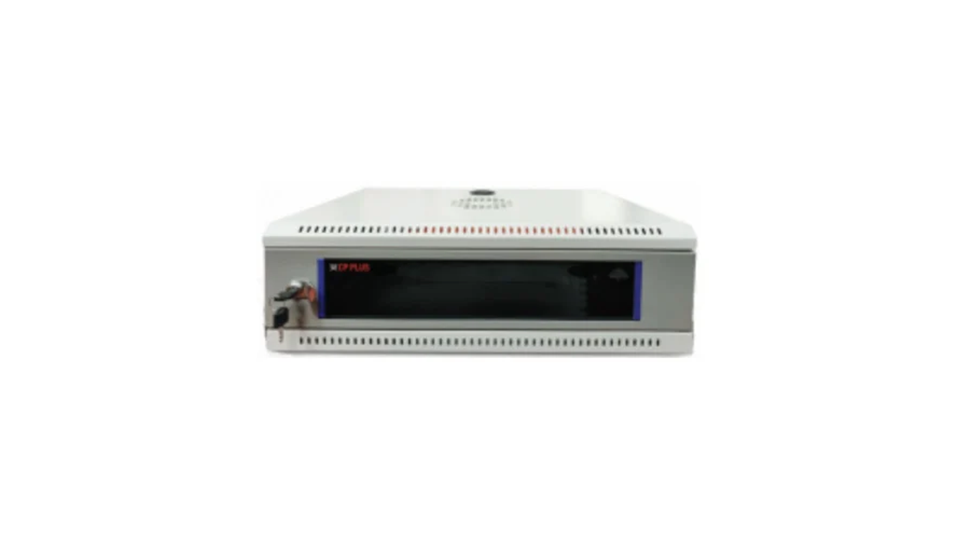

CP-HA-RK3535VM-2U

DVR walls Mount is specially designed to safeguard our DVRs from Theft

Basic frame: CRCA (MS SHEET) 0.5mm thick

-Modular Series: Foldable type, easy to build

Top & Bottom cover: cable entry cut-outs

Front Door: Lockable with Lock & Key

Standard finish: Powder coated

Dual-Tone Gray Color - fits in well with all indoor / outdoor aesthetics

Differentiator Quality

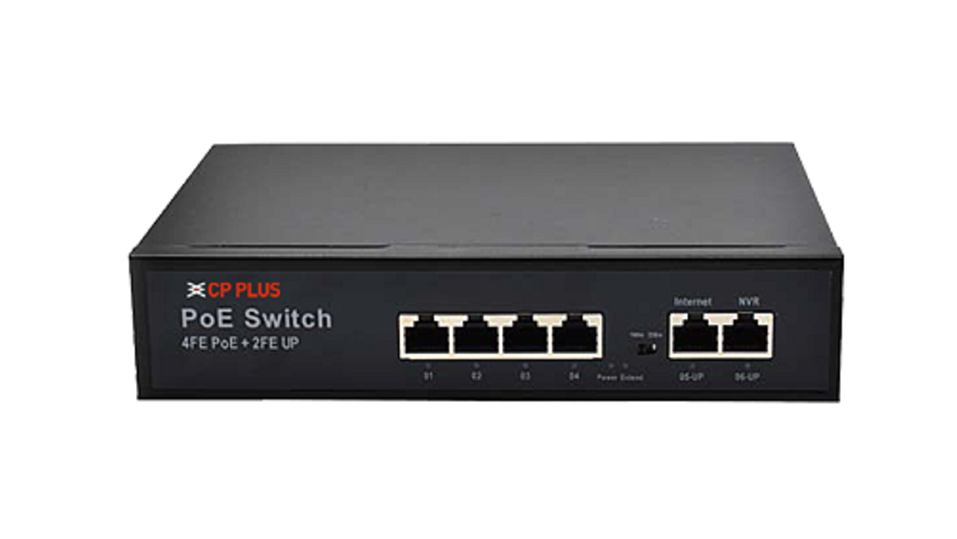

CP-SAVW-HPU4H2-65

Standard IEEE802.3 10Base-T, IEEE802.3U 100Base-TX, IEEE802.1W Spanning Tree, IEEE 802.3x flow control

Surge protection 6KV commo mode/ 4KV differential mode

Transmission Rate 10/100Mbps auto-negotiate

PoE Power Budget: 25.4W

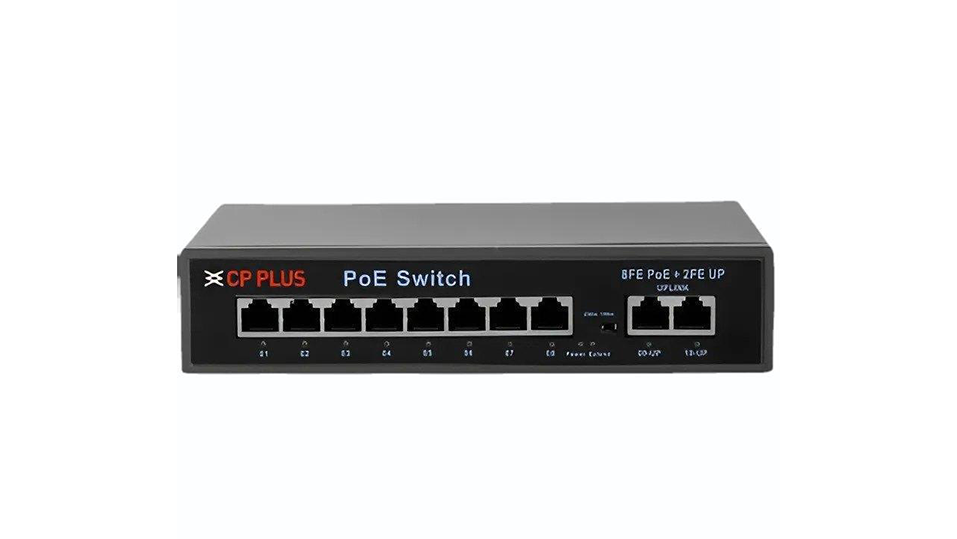

CP-SAVW-HPU8H2-96

Communication standard IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base- T

Surge protection 6KV commo mode, 4KV differential mode

Transmission mode Support Half/Full duplex Mode

PoE Power Budget: 96W

CP-UNP-F4521L30-DPQ

1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeter)

1920 (H) × 1080 (V)@ 25/30fps

Powerful 45x Optical and 16x Digital zoom

WDR(120dB), 2D/3D DNR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC, AGC

Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern

Support Starlight Technology

IR Range of 300 Mtr.

IP67, IK10, Support PoE+

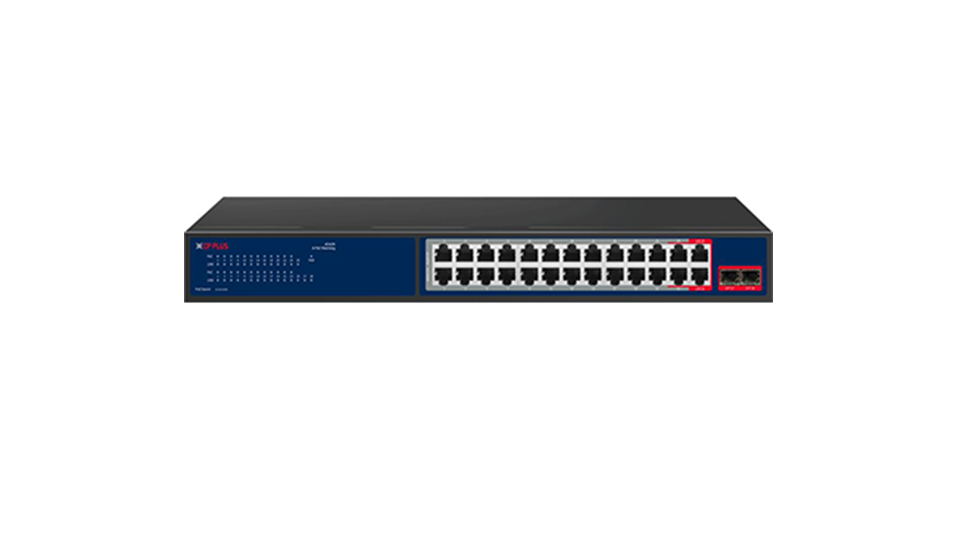

CP-ANW-HPU24G2F2-N30

Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet

Support: 6KV Lightning and 8KV ESD Protection

PoE Power Budget: 300W

Support bt 60W High Power

24 ports PoE + 2 ports Uplink + 2 ports SFP

AI Watchdog Function

Watchdog Function Port 1~24

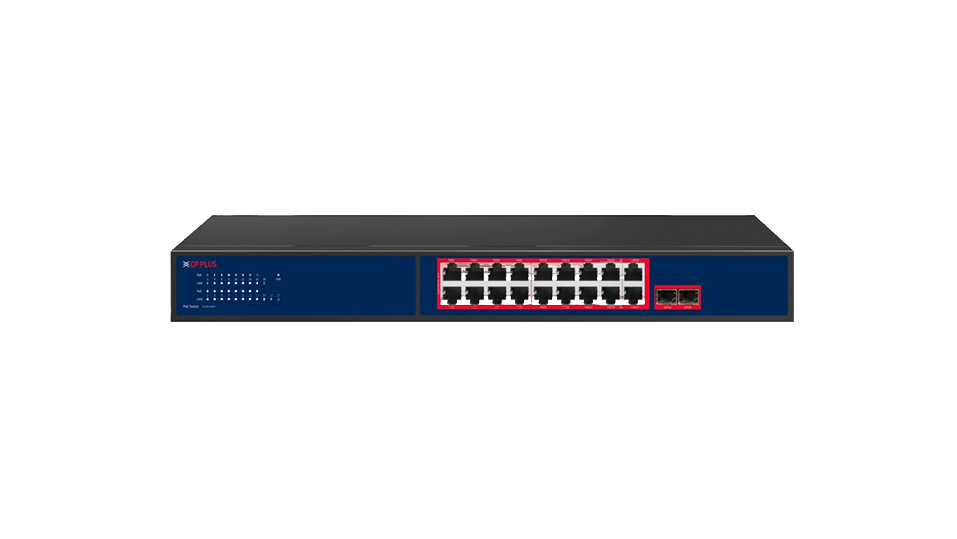

CP-ANW-GPU16G2F2-N24

Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE -TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet

Support: 6KV Lightning and 8KV ESD Protection

PoE Power Budget: 240W

Support bt 60W High Power

AI Watchdog Function

CP-UNP-F4521L30-DPQ

1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeter)

1920 (H) × 1080 (V)@ 25/30fps

Powerful 45x Optical and 16x Digital zoom

WDR(120dB), 2D/3D DNR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC, AGC

Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern

Support Starlight Technology

IR Range of 300 Mtr.

IP67, IK10, Support PoE+

IP Dome Camera

Network Camera - 1 MP / 1.3MP / 2.0MP

Night Vision IR Distance10-15m

Built in IR 12PCS LED

Mega Pixel Fixed Lens: 3.6 / 6 / 8mm

Metal Dome Housing

Supports HVR/NVR and Onvif

POE Optional, Support IEEE 802.3af

Main Stream 1280*720@30fps

1280*960@30fps / 1920*1080@30fps

IP Dome Varifocal Camera

Network Camera - 1 MP / 1.3MP / 2.0MP

Night Vision IR Distance 35m

Built in IR 36PCS LED

Mega Pixel VF Lens: 2.8 – 12mm

Metal Dome Housing

Supports HVR/NVR and Onvif

POE Optional, Support IEEE 802.3af

Main Stream 1280*720@30fps

1280*960@30fps / 1920*1080@30fps

IP Bullet Camera

Network Camera - 1.3MP / 2.0MP / 4.0MP / 5.0MP

Night Vision IR Distance15-25m

Built in IR 24PCS LED

Mega Pixel Fixed Lens : 3.6 / 6 / 8mm

Metal Bullet Housing

Support connection with HVR/NVR and Onvif

POE Optional, Support IEEE 802.3af

Main Stream 1920*1080@30fps

2048*1536@20fps

IP Bullet Varifocal Camera

Network Camera - 1.3MP / 2.0MP / 4.0MP / 5.0MP

Night Vision IR Distance 25 - 30m

Built in IR 42 PCS LED

Mega Pixel Varifocal Lens : 2.8-8mm

Metal Bullet Housing

Support connection with HVR/NVR and Onvif

POE Optional, Support IEEE 802.3af

Main Stream 1280*720@30fps, 1280*960@30fps

1920*1080@30fps, 2048*1536@20fps

CAR LISENCE PLATE CAMERA

2.0 Mega Pixel High Definition Image

2.8-12mm Varifocal Lens

Built in 8 pcs Array White LED, IR Distance 50m

Low illumination with XWDR Function

Day/ Night (ICR), 3DNR, AWB,

AGC, BLC, Motion Detect

FISH EYE CAMERA

1.56mm Fish eye Lens, 3600 angle

Built in 27 PCS IR LEDS

IR Distance 30-35m

Plastic Housing

NETWORK VIDEO RECORDER (NVR) - 4/8/16/24/32 CHANNEL

H 264 Dual Core Embedded Processor

Input：4CH / 8CH / 16CH / 24CH - 1080P/ 32CH - 960P

Supports 1pcs*4TB hard disk/ 2pcs*4TB Hard disk/ 8pcs*5TB Hard disk; / 8pcs*6TB Hard disk

Supports Cloud, HDMI / VGA output,

Supports P2P function / PTZ

Sync Playback / Supports ONVIF

PoE Switches for IP Camera - 8 Port/ 24 Port

FISH EYE CAMERA

1.56mm Fish eye Lens, 3600 angle

Built in 27 PCS IR LEDS

IR Distance 30-35m

Plastic Housing
