Baggage Scanner

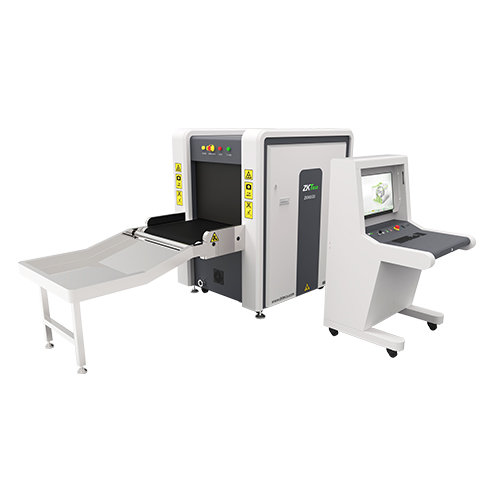

ZKX6550

ZKX6550 ZKX6550 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels. ZKX6550 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX6550 could offer clear scanning image, which allows operators to identify potential threat items visually. ZKX6550 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. With ergonomic modern design, ZKX6550 could help operators to identify suspicious items fast and accurately.



Product Description

Parameters ZKX6550
Tunnel Dimensions (W*H)
650mm * 500mm
Conveyor Speed
0.20 m/sec
Conveyor Load
120kg (Adequate distribution) (Max. Load)
Conveyor Height
650mm
Detector
Dual-energy Detector
View
Single-view
Supported Software
ZKBio SIS
Communication Interface
RJ45(TCP/IP)
Dimensions (L*W*H)
2120mm * 980mm *1381mm
Console Dimensions (L*W*H)
747mm * 706mm * 1279mm
Package Dimensions (L*W*H)
2395mm * 1195mm * 1680mm
Console Package Dimensions (L * W * H)
890mm * 840mm * 1502mm
Gross Weight
680kg+140kg (Console) (with Package)
Net Weight
560kg+100kg (Console)
Film Safety
ASA/ISO1600
Anode Voltage
140kV
Tube Current
0.5mA
Wire Resolution
36AWG
Steel Penetration
30mm
Spatial Resolution
HorizontalΦ1.6mm/VerticalΦ1.3mm
Penetration Resolution
32AWG
Generator Cooling
Sealed Oil Bath with Forced Air
Beam Direction
Vertically Upward
X-ray converter type
L-shaped Detector Line
Operating System
Windows 10
RAM
8GB
Hard Drive
128GB SSD + 2TB HDD
Max. Storage
Up to 200,000 Scanned Images
System Power
220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz
Power Consumption
< 300W
Noise Level
< 58dB(A)
Operating Temperature
-10°C to +45°C
Storage Temperature
-20°C to +60°C
Working Humidity
5-95%, Non-condensing
Radiation Leak Dosage
< 0.5μSv/h (10cm From the Surface) Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems
