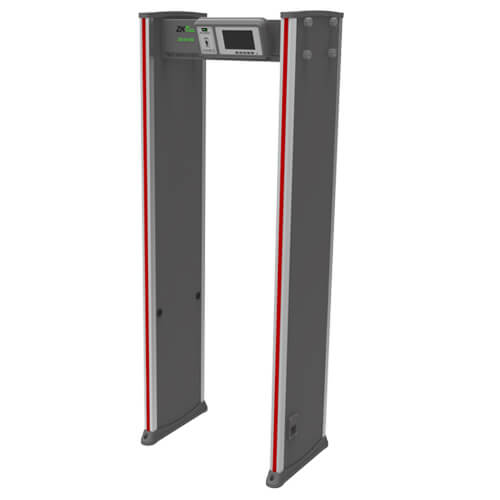

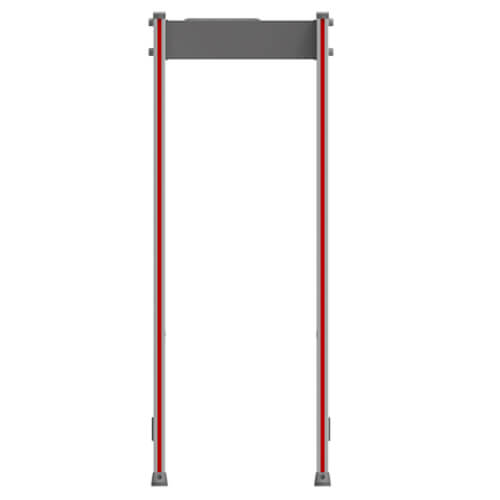

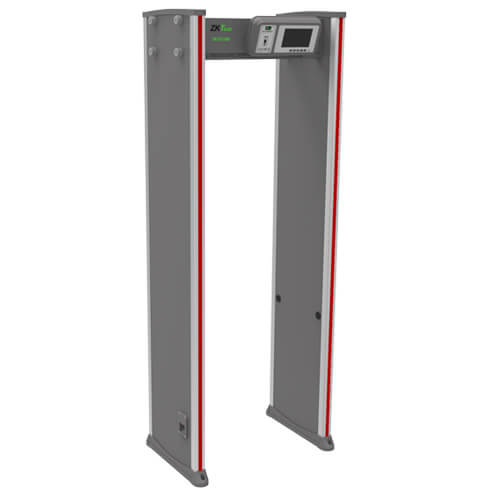

ZK-D3180
- Up to 33 detection zones and 500 sensitivity levels allow precise contraband detection.

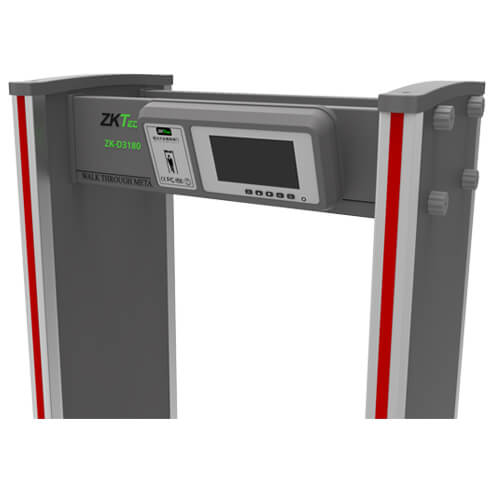

- The 7-inch LCD display for easy set up.
- Compatible with ZK Metal Detector App/Software and ZKBio SIS for real-time monitoring and data logs.
- Different sensitivity levels can be set for both inbound and outbound.
- Clear threat indication with synchronous sound alert and LED indicator.
- Count the number of people entering and leaving separately.
- Linkage with entrance gate by relay
Product Description
| Parameters | ZK-D3180 |
|---|---|
|
Physical Keypad
|
5 keys
|
|
Detection Zone
|
1 / 6 / 12 / 18 / 33 zones mode adjustable
|
|
Sensitivity Level
|
500 levels
|
|
Channel
|
100
|
|
Smallest Metal Objects Detected
|
Φ22.25*T1.85 mm(Steel-nickel Alloy)
|
|
Maximum Detection Distance
|
Vertical 20-2000mm
|
|
Detection Sound Alert
|
16 types of alarm tones (adjustable)
0-100 levels of volume adjustable (Maximum volume 80 dB)
|
|
Detection Visual Indicator
|
2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) |
|
Throughput
|
> 40 persons per minute
|
|
Self-diagnosis Program
|
Yes
|
|
Detection Mode
|
Automatic Detection Mode / Infrared Detection Mode(default)
|
|
Number of IR Groups
|
2
|
|
Detected Contrabands
|
Ferrous and non-ferrous metal weapons
|
|
Enclosure Material
|
Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
|
|
Power Supply
|
AC100V to 240V (DC12V/3A)
|
|
Input Voltage
|
DC12V, POE (optional)
|
|
Operating Current
|
1.2A
|
|
Operating Power
|
14W
|
|
Operating Time (Estimated)
|
24/7 operation capability (continuous operation)
|
|
Operating Frequency
|
5.7KHz ~ 9.6KHz
|
|
Operating Temperature
|
-20°C ~ 55°C
|
|
Storage Temperature
|
-25°C ~ 60°C
|
|
Operating Humidity
|
< 95% RH (non-condensing)
|
|
Ingress Protection Rating
|
N/A (waterproof and dustproof)
N/A (vandal resistant)
|
|
Application Environment
|
Indoor
|
|
Dimensions (L*W*H)
|
2226 * 845 * 580 (mm)
|
|
Lane Size (L*W*H)
|
2000 * 710 * 498 (mm)
|
|
Dimensions of Product with Packaging (L*W*H)
|
2280 * 347 * 660 (mm)
|
|
Net Weight
|
46 kg
|
|
Gross Weight
|
52kg
|
|
Interface
|
Relay Output: YES
Network Interface: YES
|
|
Remote Control
|
Yes
|
|
Certifications
|
CE, FCC, ISO9001
|
