In Bio Pro Plus Series
Time Attendance Products
In Bio Pro Plus Series
InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area networks (WAN), enhancing deployment flexibility and scalability.
Products Description
| Parameters | FR1200 |
|---|---|
|
Model Name
|
InBio160 Pro Plus
InBio260 Pro Plus
InBio460 Pro Plus |
|
Operation System
|
Linux OS
|
|
Hardware
|
CPU: Single Core@1.0GHz
RAM: 128MB; ROM: 256MB;
|
|
Authentication Method
|
Card / Password / Fingerprint / Face / QR Code
|
|
Access Point Capacity
|
InBio160 Pro Plus: 1 Access Point
InBio260 Pro Plus: 2 Access Points
InBio460 Pro Plus: 4 Access Points
|
|
Reader Capacity
|
InBio160 Pro Plus: 2 * RS-485 Readers (ZKTecoRS-485 / OSDP), 2 * 26 / 34 / 66 bit Wiegand Readers
InBio260 Pro Plus: 4 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers
InBio460 Pro Plus: 8 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers
|
|
IO Expansion Board Capacity
|
8pcs EX0808 (RS-485 connection)
|
|
User Capacity
|
100,000
|
|
Card Capacity
|
100,000 (1:N) (Standard)
|
|
Fingerprint Template Capacity
|
20,000 (1:N) (Standard)
|
|
Face Template Capacity
|
3,000 (1:N) (Standard)
|
|
QR Code Capacity
|
100,000 (Static QR Code / Dynamic QR Code)
|
|
Transaction Capacity
|
500,000 (Standard)
|
|
Biometric Algorithm
|
ZKFingerprint V10.0 / V13.0(Default)
ZKLiveface 3.5 / 4
|
|
Biometric Authentication Speed
|
<0.3s @ Fingerprint
<0.3s @ Facial
|
|
False Acceptance Rate (FAR) %
|
FAR ≤ 0.0001% @ Fingerprint
FAR ≤ 0.01% @ Facial
|
|
False Rejection Rate (FRR) %
|
FRR ≤ 0.01% @ Fingerprint
FRR ≤ 0.02% @ Facial
|
|
Number of Inputs
|
InBio160 Pro Plus: 1 * Exit Button, 1 * Door Status, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
InBio260 Pro Plus: 2 * Exit Button, 2 * Door Status, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
|
|
Number of Outputs
|
InBio160 Pro Plus: 1 * Form C Relay for Lock, 1* Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
InBio260 Pro Plus: 2 * Form C Relay for Lock, 2 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
|
|
Max. Card Length
|
Supports up to 66 bits Card Length
|
|
QR Code
|
PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.
Dynamic QR codes on the ZKBio CVSecurity mobile application
|
|
Communication
|
InBio160 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1, Aux Outputs * 1; Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm *1
InBio260 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2, Aux Outputs * 2; Electric Lock * 2, Door Sensor * 2, Exit Button * 2, Alarm * 2
InBio460 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4, Aux Outputs * 4 ; Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4
|
|
Standard Functions
|
Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Linkage, Global Linkage, Multiple Verification Methods
|
|
Access Control Interface
|
Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)
|
|
Power Supply
|
9.6V- 14.4V DC
|
|
Operating Temperature
|
0℃ to 45℃
|
|
Operating Humidity
|
20% to 80% RH (Non-condensing)
|
|
Dimensions (L * W * H)
|
InBio160 Pro Plus: 185.12 mm * 106 mm * 36.07 mm
InBio260 Pro Plus: 185.12 mm * 106 mm * 36.07 mm
InBio460 Pro Plus: 226 mm * 106 mm * 36.07mm
|
|
Gross Weight
|
InBio160 Pro Plus: 1.004 Kg
InBio260 Pro Plus: 1.037 Kg
InBio460 Pro Plus: 1.098 Kg
|
|
Net Weight
|
InBio160 Pro Plus: 0.390 Kg
InBio260 Pro Plus: 0.422 Kg
InBio460 Pro Plus: 0.494 Kg
|
|
Supported Software
|
ZKBio CVSecurity
|
|
Installation
|
Supported DIN Rail mount / Wall-mount / Metal Enclosure (Optional)
|
|

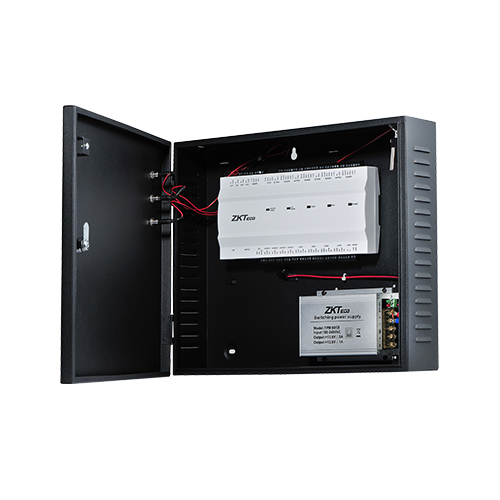

Enclosure (Optional)
|
InBio160 Pro Plus: Size: 350 mm * 90 mm *300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 2A;1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: (L*W*H):151 x 94 x 65 mm)]; Gross Weight: 3.57 Kg
InBio260 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: 151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.57 Kg
InBio460 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size:151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.77 Kg
|
|
Certifications
|
ISO14001, ISO9001, CE, FCC, RoHS
|
|
Factory ID
|
InBio160 Pro Plus: AC02-CB11H-U10
InBio260 Pro Plus: AC02-CB12H-U10
InBio460 Pro Plus: AC02-CB14H-U10
|
