Display And Alarm

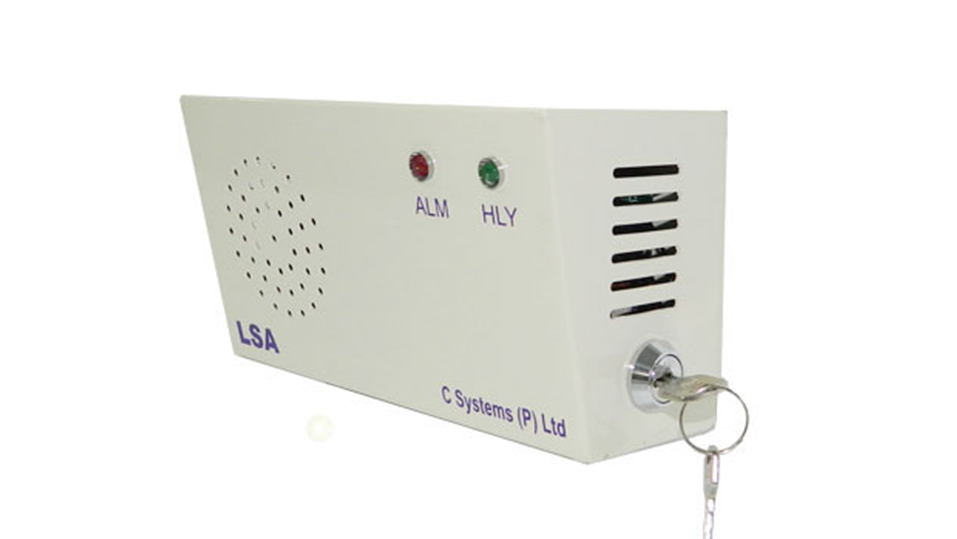

Local Scare Alarm

* Fire Exit door monitoring
* Panic bar

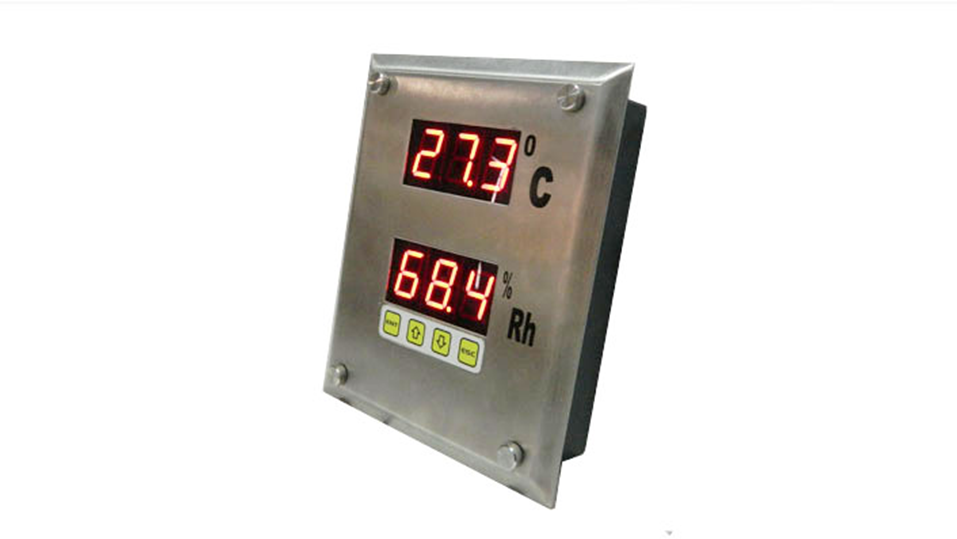

Temperature & Rh Display And Alarm

* 3 Digit 7 segment RED LED display
* Displays dynamic values of T & Rh
* Ideal solution for monitoring T & Th values in server rooms, MUX rooms, Critical Rooms, operation theatre, POR etc

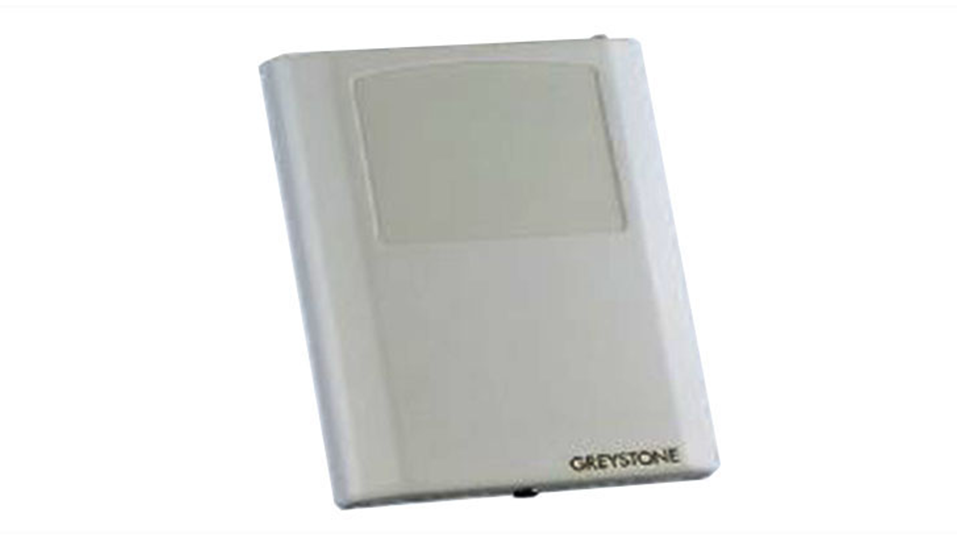

Temperature & Rel. Humidity Sensor

* Highly stable RH sensor element
* Humidity range: 0-100%
* Accuracy available 2%, 3%, & 5%
* Choice of precision temperature sensors
* LCD display available
* Field selectable outputs

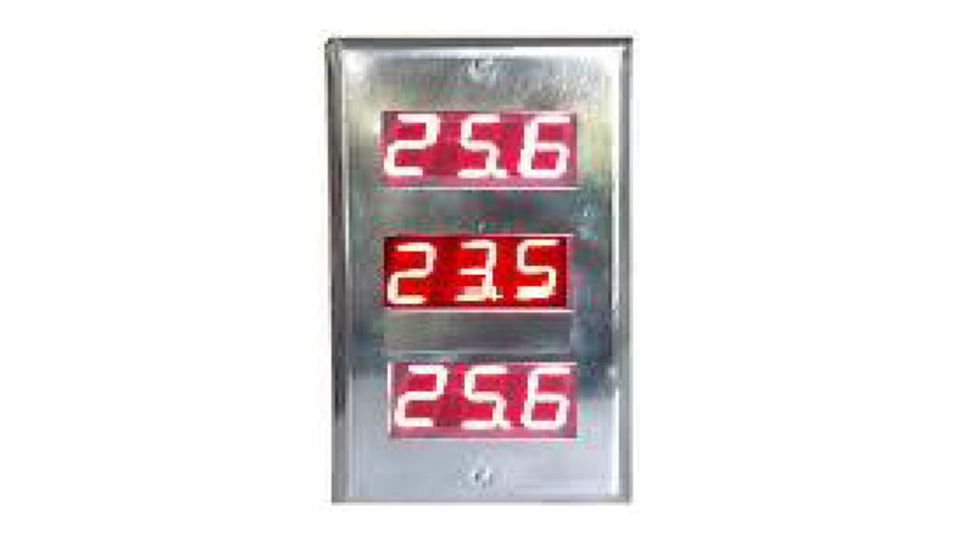

Temperature, Rh & DP Display and Alarm

* Clean Rooms
* AHU Rooms
* Critical Rooms
* Medical Assistance & POR Rooms

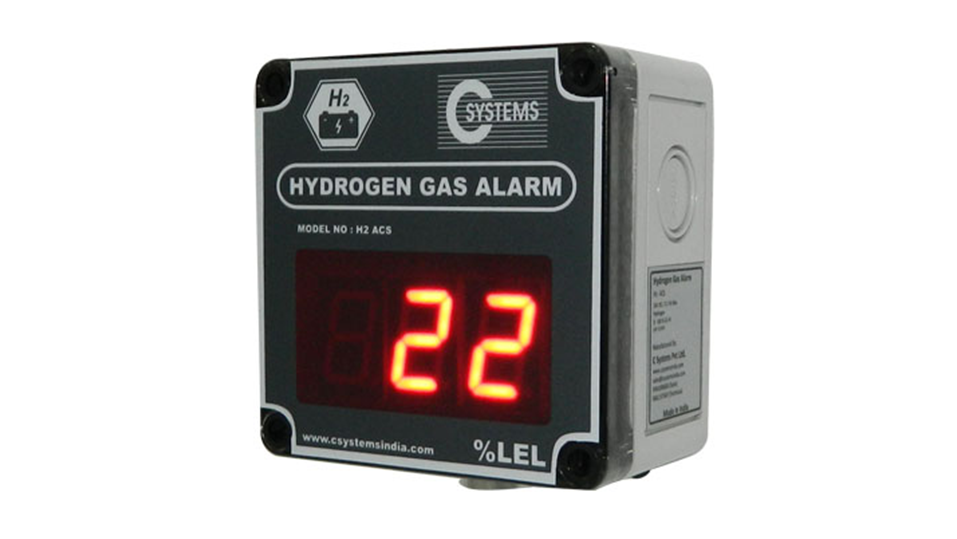

Hydrogen Gas display & Alarm

C Systems SMART SENSE H2-ACS series of hydrogen gas detection & alarm system is a 16 bit microprocessor based sigma delta technology with integrated Hydrogen Gas sensing Element. The SMART SENSE xx-ACS series has sensors capable of detecting IsoButane, Propane (LPG) and Methane. The Smart Sense controller dynamically reads the presence of Hydrogen Gas in the installed location, process the gas concentration and converts the same to % LEL ( Low Explosive limit). The panel has in built timer to program the exhaust fan control. When the programmed time is elapsed, a relay will be triggered to switch on the exhaust fan for a pre programmed time. The display unit is housed in IP66 UL listed plastic enclosure with clear face.

LPG Gas display & Alarm

C Systems SMART SENSE LPG-ACS series of LPG detection & alarm system is a 16 bit microprocessor based sigma delta technology with integrated LPG Gas sensing Element. The SMART SENSE xx-ACS series has sensors capable of detecting Iso Butane, Propane (LPG) and Methane. The Smart Sense controller dynamically reads the presence of LPG Gas in the installed location, process the gas concentration and converts the same to % LEL ( Low Explosive limit). The display unit is housed in IP66 UL listed plastic enclosure with clear face.

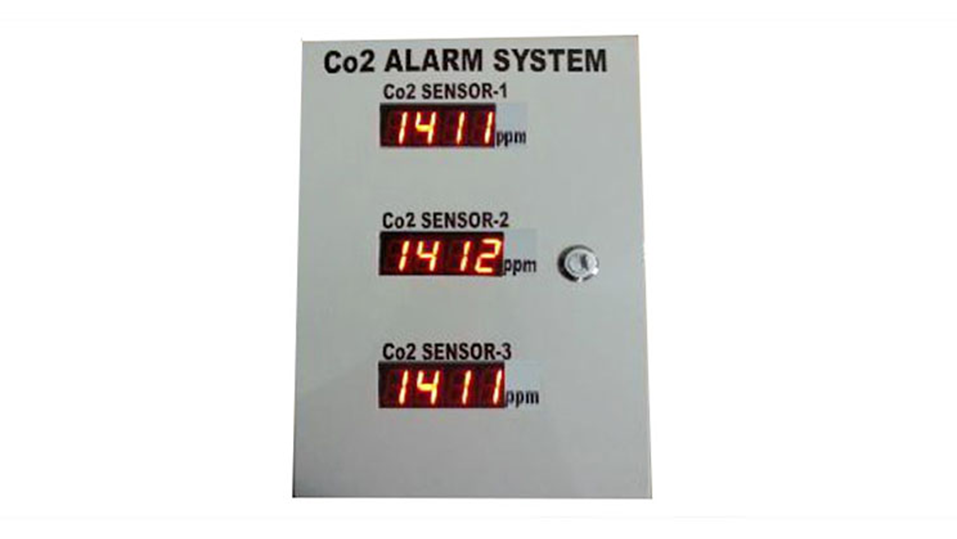

Carbon di Oxide Display Alarm

Co2 Sense series of display panels are microprocessor based intelligent display unit. The core module is a 16 bit microcontroller with 12 Bit-sigma Delta ADC circuit. All the analog inputs are protected by input noise filters for maximum accuracy. Each display is a ½ inch, 7 segment display. All the analog inputs accept 0-10V / 4 – 20mA. Co2 Sense series provides the CO2 level in ppm units. The panel not only displays the Co2 level but also triggers relay, when the set point is reached. The set point can be programmed through small key pad behind the display unit. The Co2 value can be accessed via MODBUS protocol for integration with BMS. In addition to the MODBUS read registers, Co2 Sense series allows the user to write a set point value through MODBUS register so that when the displayed value reaches the set point, a relay is triggered with a buzzer sound.

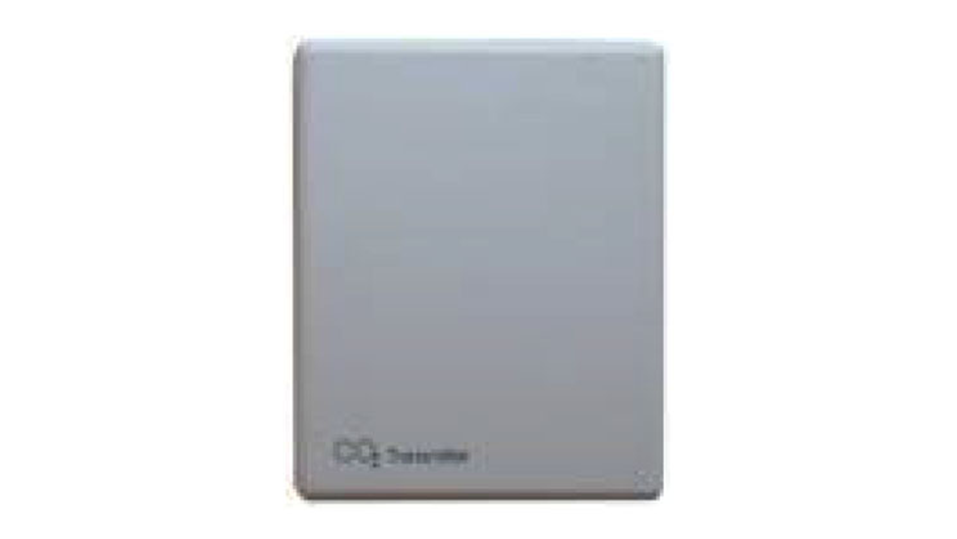

Carbon-Di-Oxide sensor Transmitter

* Wall-mounting
* Providing one analog output with voltage or current selectabler
* 0~10VDC/4~20mA selectable easily via jumpers
* Design for HVAC, ventilation systems, offices, or other public places.
* CE-Approval

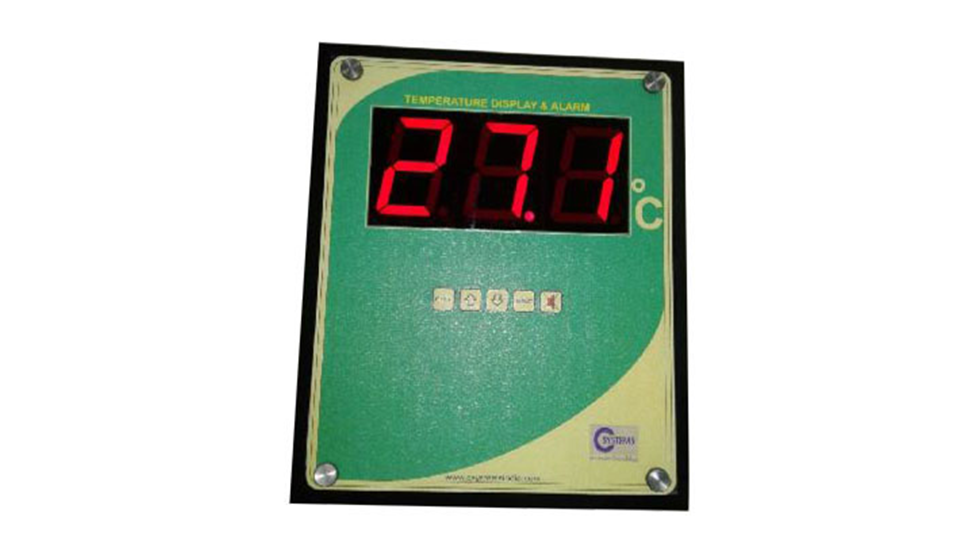

Server Room Temperature Alarm

C Systems SMART SENSE TSR-DS series is a microprocessor based Digital technology with inbuilt digital thermometer to measure & display the temperature in Deg C. The unit measures the temperature in server room / data center / cold room etc. The SMART SENSE TSR-DS series accepts a set point value from the user. When the actual temperature crosses the set point value, an alarm hooter will be initiated. A mute button is provided to silence the hooter.

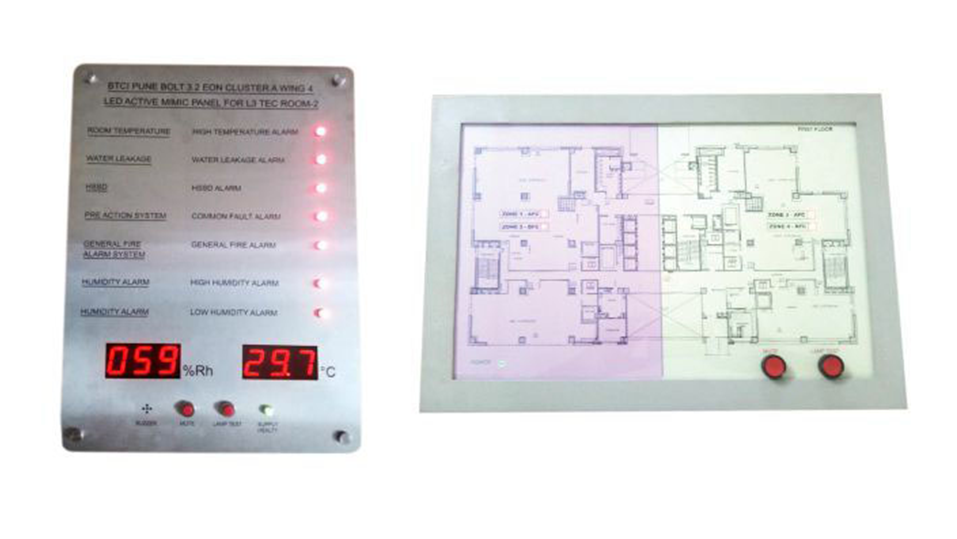

Mimic Panel 10 & 16 Channels

Mimic Alert Fire alarm Mimic panel is a microprocessor based intelligent control panel that can accept up to 10 zones per control card. This offers more capability to the extensive options already offered by any Fire Alarm panel which provides programmable control relay modules. The CSMP-10 is the master PCB which can control up 10 outputs. If further outputs are required, CSMP-10 can be integrated with the master PCB offering a total outputs of 50.The CSMP-10 can be looped and has inbuilt power supply of 12V / 1A DC. The flexibility of these boards is further enhanced by the fact that, when a zone control relay module gets activated, the corresponding LED in the panel will get illuminated and a audible buzzer gets activated. A “Mute” button in the panel is used to silence the buzzer sound. Also the “Test Button” in the panel is used to test the healthy state of all the LED’s in the mimic panel.
