FHT2200L
Time Attendance Products
FHT2200L

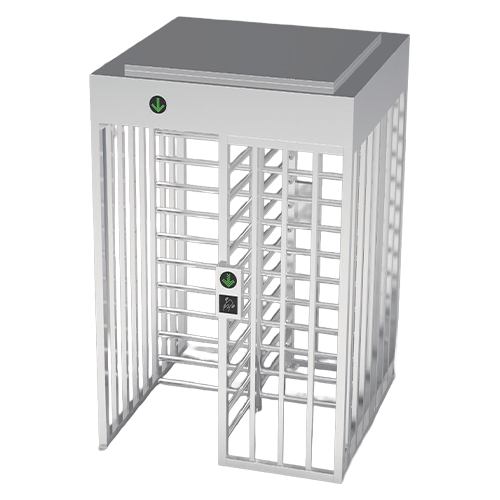

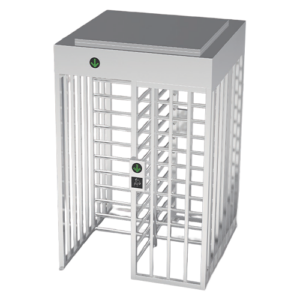

FHT2200L is a single lane security full height turnstile and the angle of the brake rod is 90 degrees. The whole form a closed lane space and with good safety and security performance. It is often used in situations with high-efficient pass throught.
Features
• SUS304 stainless steel material and full capping design, with superior waterproof performance
• Personalized reader panel installation, can be installed card, fingerprint, QR code and other reader devices
• With anti-tailgating function, one brake can only pass one person
• Fire mode, the gate can rotate freely when the power is off
Product Description
| Parameters | FHT2200L |
|---|---|
|
Cabinet Material
|
SUS304 Stainless Steel
|
|
Barrier Material
|
SUS304 Stainless Steel
|
|
Barrier Movement
|
Rotating
|
|
Dimension (L*W*H)
|
1450*1500*2200(mm)
|
|
Dimension with Packing (L*W*H)
|
1550*1550*2350(mm)
|
|
Emergency Mode
|
Supports
|
|
Footprint (mm*mm)
|
1450*1500(mm)
|
|
Ingress Protection
|
IPX4
|
|
LED Indicator
|
Supports
|
|
Lane Width (mm)
|
600 mm
|
|
MCBF
|
1 million
|
|
Max. Speed of Throughput
|
|
|
Net Weight (kg)
|
100
|
|
Power Requirements |
AC 110V/220V, 50/60Hz |
|
Security Level |
High |
|
Speed of Throughput
|
RFID : Maximum 20/ minute
Fingerprint : Maximum 15/ minute |
|
Working Environment |
Indoor/Outdoor |
